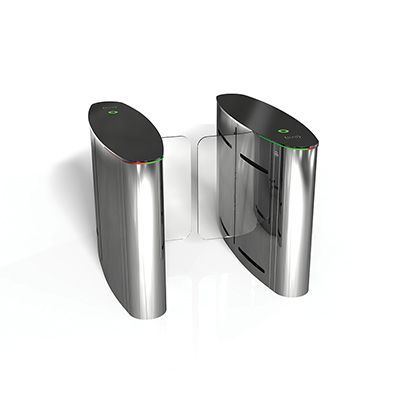

LTOP-201

Material : 304 grade stainless steel (EN 10082-2Grade 1G/2G) top lid, Marble top lid (optional), granite top lid (optional), wooden top lid (optional)

Wing : Plexiglass

Mechanism : Works compatible with all kinds of access control systems.

Electronics : Microprocessor controlled electronic circuit.

Functions: Bi-directional operation with microprocessor control and allowing passage of one person, buffers incoming signals before completing a passage thanks to electronic transit memory feature and allows passage without closing the wings.

Power Supply : 110-230 VAC, 47-60 Hz

Power Consumption : 84W in transit, 10W in standby (for 2 wings)

Internal Voltage : All internal voltages are designed to be 24 Vdc for safety reasons.

Power Failure : In case of power failure, speed gate switches to open or closed state upon request. In emergency, speed gate switches to open state.

Operating Temperature : -10°C / +70°C Transport and storage temperature -25 / +55°C

Transit Speed : 40 people / minute

Passage Width : 56 cm

Weight : 142 kg (Single Wing)

Security Level: Deterrent
